MRP in the News



2014 IMAGES OF NAPA, CALIFORNIA
FOLLOWING M6.0 EARTHQUAKE

The following images show examples of observed damage by MRP Engineering of the August 24, 2014, M6.0 Napa, California, earthquake. All photos taken by Mark R. Pierepiekarz.

Scroll over the thumbnails below to see full-size images.

Photo: M. Pierepiekarz

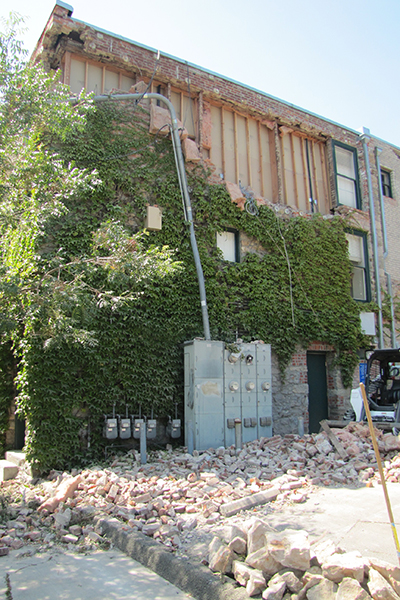

This three-story structure includes an unreinforced masonry façade, a portion of which collapsed onto the sidewalk below.
 Photo: M. Pierepiekarz

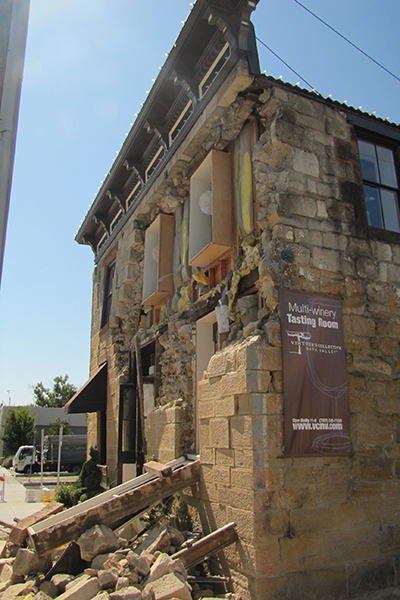

Damaged 1875-vintage stone masonry building in Napa (note wall anchorage through bolts with steel plates).

Photo: M. Pierepiekarz

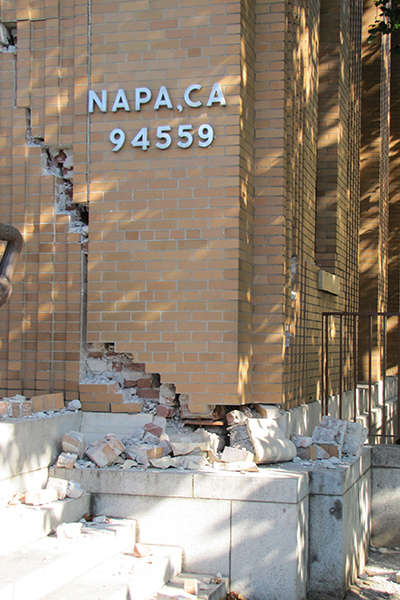

Napa post office damage.
Photo: M. Pierepiekarz

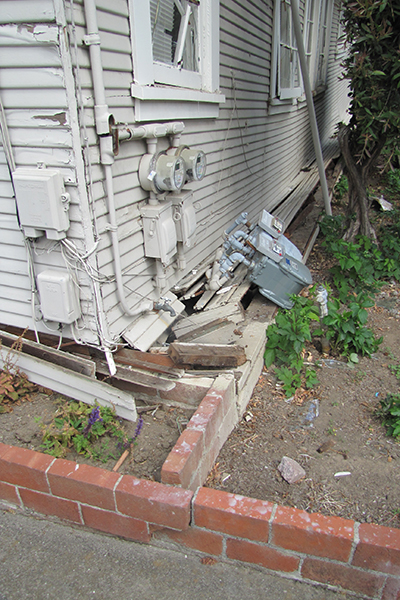

Residential wood-framed structures that predate modern seismic design consideration can shift from their foundations when short wood-framed walls are present surrounding the crawl space below the main floor. These common failures can lead to a fire-following-earthquake hazard from severed natural gas piping and nearby electrical components.

Photo: M. Pierepiekarz

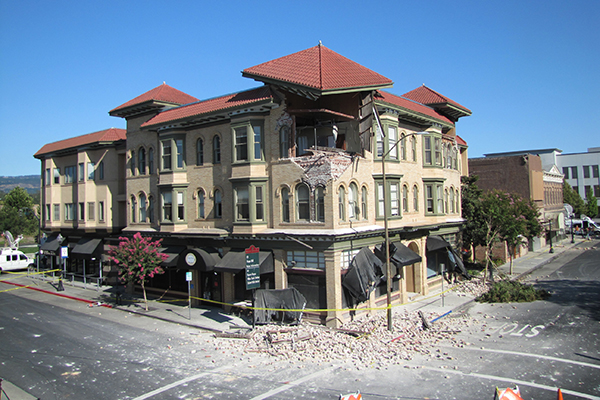

Masonry wall failure in a building retrofitted with wall anchors at roof and floor levels.
